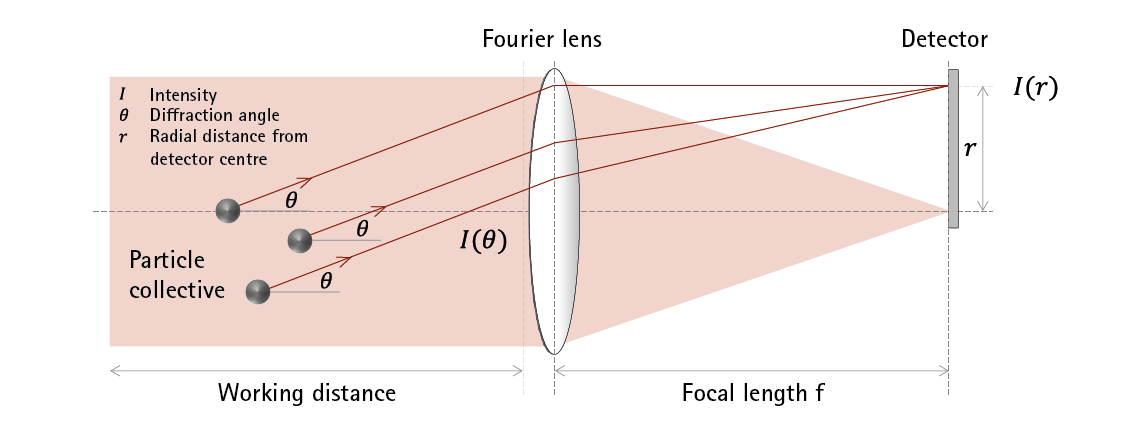

Best possible agreement with absolute values is achieved using the more powerful evaluation algorithms of FREE and MIEE. Extremely short analysis times – especially for dry dispersion – are maintained and even for the combination of four measuring ranges the time requirement typically necessary for suspension analysis is kept. The R-series of our particle size analyser HELOS sets new benchmarks for precision and accuracy. Latest improvements comprise enhanced application of parameter-free Fraunhofer evaluation down to the submicron regime (below 1 µm). Laser diffraction is now even closer to absolute standards. Continually, industrial requirements and limits are considerably outmatched. The use of more stable inversion procedures in combination with best optical models and the inclusion of signal statistics brings the laser diffraction even closer to absolute standards. Continually, to the specifications of ISO 13320 "Particle size analysis - laser diffraction methods" the requirements and limits are considerably outmatched.

Download more information about HELOS family

Forgot your password?

Are you interested in additional content? Please register an account. After confirming the registration link brochures, application notes and other documents on particle measurement will be available for download.

Watch the HELOS teaser video!

To protect your personal data, your connection to the video streaming provider has been blocked. Click to unblock the video streaming provider. By loading the video you accept the video streaming provider’s privacy policy. More information about the video streaming provider’s privacy policy can be found here: Vimeo Privacy Policy

Modular system design for product-specific particle size analyses

The precondition for convincing and reliable measuring results are based upon product-adapted and reproducible sample analyses. A product adaption will be achieved if particle collectives are dispersed and supplied to the measurement in their original condition: dry powders and granules, suspensions and emulsions wet, as well as sprays and inhalants as aerosols – without time-consuming preparations. The modular system design together with a great variety of dispersing and dosing units provides a flexible adaptation to the most diverse industrial and research applications:

Disperser for dry powders, granules, fibres

RODOS dry dispersion, with compressed air and particle accelerations of up to 100 m/s, achieves unique dispersion performance for powder, fibres and granulates, ranging from under 0.1 µm to 4,000 µm. Sample quantities of under 1 mg to 1,500 g are reliably and reproducibly dispersed. Statistically significant analyses are achievable with sample volumes of up to 1,000 ml, even with widely distributed particle systems. The accelerated individual particles are supplied to the HELOS laser diffraction or QICPIC image analysis measurement zone in the aerosol open jet, and precisely measured.

Dosing unit for dry particle systems

Precise dosing and supply of dry particle systems from milligram to kilogram with constant sample mass-flow.

Disperser for fibres and granules

The GRADIS freefall shaft with deflector plate cascade is the go-to choice for dispersing free-flowing powders, fibres and granulate from 10 µm to 10,000 µm. Gentle dispersion – including of larger sample quantities up to 1,000 g – is ideal for coarser or metastable particles that are to be supplied to laser diffraction with HELOS, or image analysis with QICPIC.

Micro dosing unit for dry toxic substances in sample vials

Micro dosing system for smallest amounts of dry active also toxic substances in encapsulated sample vials.

SUCELL is a fully automated wet disperser, that is fitted with ultrasound for particle size analysis of a suspension or stable emulsion, ranging from 0.1 µm to around 2,000 µm in size. It pumps and analyses volume of 500 ml through a flow cuvette in a closed circuit, and can be used with all sensors of the HELOS laser diffraction family and with the QICPIC image analysis sensor.

Disperser for suspension, emulsion, gels

QUIXEL is a universal and fully automatic wet dispersion system with an integrated ultrasound generator and optional temperature control. It was developed for particle size analysis on suspensions and emulsions ranging from 0.1 µm to 3,500 µm, using HELOS laser diffraction. Its innovative, tubeless design enables very short measurement cycles, guarantees high chemical resistance, and offers a variable analysis volume from 250 ml to 1,000 l.

The wet dispersion system CUVETTE has been specially developed for the particle size analysis of smallest quantities with HELOS laser diffraction. It masters suspensions and emulsions with particles from 0.1 µm to 3,500 µm. The sintered stationary glass cuvettes are extremely chemically resistant and offer a minimum of either 6 ml sample volume (with manual stirrer) or 50 ml sample volume (with magnetic stirrer and ultrasonic finger).

Disperser for powders and liquids

The OASIS system makes it easy to switch between dry and wet dispersion. A SUCELL mounted at the top of RODOS operates a multifaceted pump circuit for suspensions and emulsions with particles from 0.1 µm to 2,000 µm. Alternatively, the aerosol open jet well-known from RODOS is available for dry samples with particles from 0.1 µm to 4,000 µm. OASIS can be used both with the HELOS range of laser diffraction sensors and in dynamic image analysis with QICPIC.

Dosing unit for wet or dry products in batch mode

For a high throughput of dry or wet samples, MULTISAMPLER offers a fully-automated sample handling system. Up to 70 sample vials with a volume of 39 ml each is supplied from a rack to the system in batch mode.

Dosing unit for droplet size characterisation

Dosing unit for actuation of pump sprays for droplet size characterization within generated spray cones with laser diffraction sensor HELOS/BR.

Dosing unit for aerosol analysis DPI’s, MDI’s, nebulizers, pump and propellant gas sprays

Dosing unit for aerosol analysis of DPI’s, MDI’s, nebulizers, pump ans propellant gas sprays with laser diffraction sensor HELOS/BR.

Dosing unit for particle and droplet size analysis within spray cones of metered dose aerosols, pump or propellant gas sprays with laser diffraction sensor HELOS/KR-Vario.

HELOS-R Series

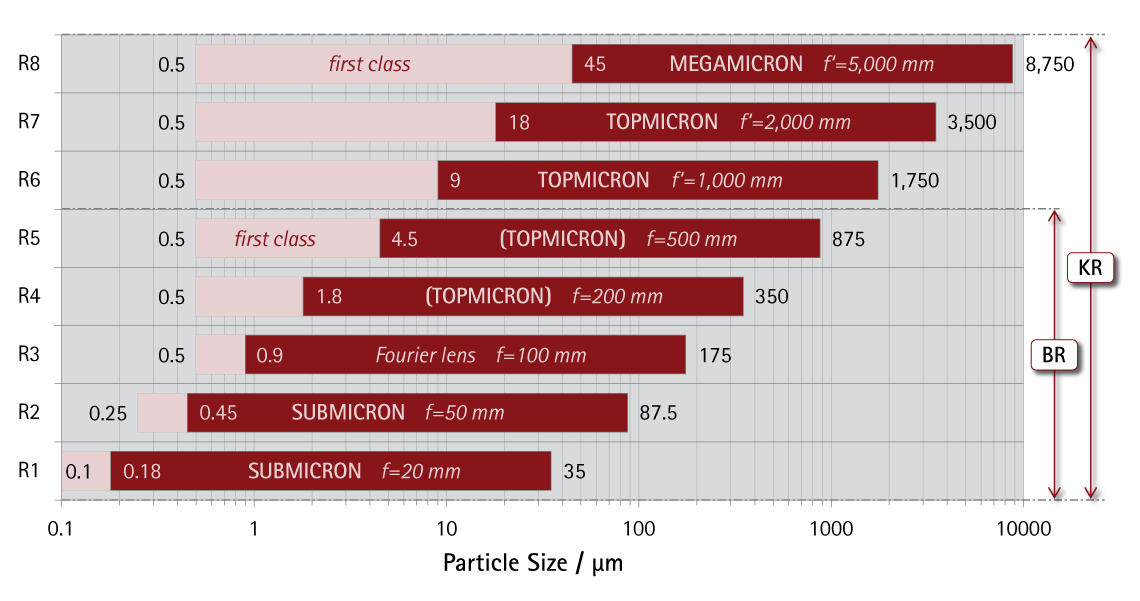

The HELOS family includes 3 laser particle sizer:

Sensor Measuring range/ Modules Applications
HELOS/BR 0.1 - 875 µm/ 5 powders, suspensions, emulsions, sprays & aerosols
HELOS/KR 0.1 - 8,750 µm/ 8 powders, granules, suspensions, emulsions, sprays & aerosole
HELOS/KR-Vario 0.1 - 8,750 µm/ 8 powders, granules, suspensions, emulsions, sprays & aerosols, special applications

HELOS/BR is the shortest model version of the instrument family and finds room on every laboratory table. It integrates up to 5 optical modules for a measuring range from below 0.1 µm to 875 µm. A multitude of measuring tasks are fulfilled reliably and offers measuring confidence even to the coarser particle range. The laser analyzer can be used with all HELOS dispersing units.

ConfigurationS WITH HELOS/BR
HELOS/BR + RODOS + VIBRI/L

HELOS/BR + RODOS + VIBRI/L

boost: 5

Laser Diffraction | Dry
Size range: 0.1 µm - 875 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + RODOS/L + VIBRI/L

HELOS/BR + RODOS/L + VIBRI/L

boost: 6

Laser Diffraction | Dry
Size range: 0.1 µm - 875 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + QUIXEL

HELOS/BR + QUIXEL

boost: 6

Laser Diffraction | Wet
Size range: 0.1 µm - 875 µm
Analysis volume: 300 ml - 1,000 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + SUCELL

HELOS/BR + SUCELL

boost: 5

Laser Diffraction | Wet
Size range: 0.1 µm - 875 µm
Analysis volume: 50 / 500 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + OASIS/L + VIBRI/L

HELOS/BR + OASIS/L + VIBRI/L

boost: 6

Laser Diffraction | Dry
Size range: 0.1 µm - 875 µm
Sample amount: < 1 mg - 1,000 g
Laser Diffraction | Wet
Size range: 0.1 µm - 875 µm
Analysis volume: 50 / 500 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + RODOS/L + VIBRI/L at-line

HELOS/BR + RODOS/L + VIBRI/L at-line

boost: 5

Laser Diffraction | Dry
Size range: 0.1 µm - 875 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + RODOS/L + ASPIROS

HELOS/BR + RODOS/L + ASPIROS

boost: 3

Laser Diffraction | Dry
Size range: 0.1 µm - 875 µm
Sample amount: < 1 mg - 1 g
Sample volume: 650 µl

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + CUVETTE 50

HELOS/BR + CUVETTE 50

boost: 5

Laser Diffraction | Wet
Size range: 0.25 µm - 3,500 µm
Analysis volume: 30 ml - 50 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + CUVETTE 6

HELOS/BR + CUVETTE 6

boost: 5

Laser Diffraction | Wet
Size range: 0.1 µm - 87.5 µm
Analysis volume: 4 ml - 6 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + SPRAYER

HELOS/BR + SPRAYER

boost: 5

Aerosols | Sprays
Size range: 0.25 µm - 875 µm
Method: Laser Diffraction

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + SPRAYER + ROTOR

HELOS/BR + SPRAYER + ROTOR

boost: 6

Aerosols | Sprays
Size range: 0.25 µm - 875 µm
Method: Laser Diffraction

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + INHALER

HELOS/BR + INHALER

boost: 6

Aerosols | Sprays
Size range: 0.25 µm - 875 µm
Method: Laser Diffraction

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + QUIXEL + LIQIBACK

HELOS/BR + QUIXEL + LIQIBACK

boost: 3

Laser Diffraction | Wet
Size range: 0.1 µm - 875 µm
Analysis volume: 300 ml - 1,000 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/BR + QUIXEL + MULTISAMPLER/wet

HELOS/BR + QUIXEL + MULTISAMPLER/wet

boost: 3

Laser Diffraction | Wet
Size range: 0.1 µm - 875 µm
Analysis volume: 70 / 140 x 39 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR is the longest model version of the instrument family and integrates up to 7 out of 8 optical modules for a measuring range from 0.1 µm to 8,750 µm. All measuring tasks are fulfilled reliably in the submicron range as well as for coarsely dispersed material. The laser diffraction sensor can be used with all HELOS dispersing units.

  • Measuring range from 0.1 µm to 8,750 µm
  • Long optical bench | 110 cm footprint
  • Modular design combinable with all HELOS dispersing units
  • Unlimited performance
Configurations WITH HELOS/KR
HELOS/KR + RODOS + VIBRI/L

HELOS/KR + RODOS + VIBRI/L

boost: 5

Laser Diffraction | Dry
Size range: 0.1 µm - 3,500 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + RODOS + VIBRI/R

HELOS/KR + RODOS + VIBRI/R

boost: 2

Laser Diffraction | Dry
Size range: 0.1 µm - 3,500 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + RODOS/L + VIBRI/R

HELOS/KR + RODOS/L + VIBRI/R

boost: 3

Laser Diffraction | Dry
Size range: 0.1 µm - 3,500 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + RODOS/L + VIBRI/L

HELOS/KR + RODOS/L + VIBRI/L

boost: 6

Laser Diffraction | Dry
Size range: 0.1 µm - 3,500 µm
Sample amount: < 1 mg - 1,000 g

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + GRADIS + VIBRI/L

HELOS/KR + GRADIS + VIBRI/L

boost: 4

Laser Diffraction | Dry
Size range: 0.5 µm - 8,750 µm
Sample amount: 10 g - 1,000 g

Show configuration

Suited for

Applied for control of

HELOS/KR + QUIXEL

HELOS/KR + QUIXEL

boost: 6

Laser Diffraction | Wet
Size range: 0.1 µm - 3,500 µm
Analysis volume: 300 ml - 1,000 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + QUIXEL + LIQIBACK

HELOS/KR + QUIXEL + LIQIBACK

boost: 3

Laser Diffraction | Wet
Size range: 0.1 µm - 3,500 µm
Analysis volume: 300 ml - 1,000 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + SUCELL

HELOS/KR + SUCELL

boost: 5

Laser Diffraction | Wet
Size range: 0.1 µm -1,750 µm
Analysis volume: 50 / 500 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + CUVETTE 50

HELOS/KR + CUVETTE 50

boost: 5

Laser Diffraction | Wet
Size range: 0.25 µm - 3,500 µm
Analysis volume: 30 ml - 50 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR + OASIS/L + VIBRI/L

HELOS/KR + OASIS/L + VIBRI/L

boost: 6

Laser Diffraction | Dry
Size range: 0.1 µm - 3,500 µm
Sample amount: < 1 mg - 1,000 g
Laser Diffraction | Wet
Size range: 0.1 µm - 1,750 µm
Analysis volume: 50 / 500 ml

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR-Vario is the most flexible model version of the family and is suitable for laboratory tasks as well as for technically complex measuring arrangements. It integrates up to 7 out of 8 optical modules in the measuring range from 0.1 µm to 8,750 µm. The open measuring zone, which can be extended to several meters, supports the flexible adaptation of the optical measuring system to individual customer requirements for demanding applications in laboratory or pilot plant environments. HELOS/KR-Vario is perfectly suited for technical spray applications, e.g. in the agricultural sector or for in-situ measurements in wind tunnels with complex setups.

Configurations WITH HELOS/KR-Vario
HELOS/KR-VARIO

HELOS/KR-VARIO

boost: 5

Aerosols | Sprays
Size range: 0.5 µm - 3,500 µm
Method: Laser Diffraction

Show configuration

Suited for

Typical applications

Applied for control of

HELOS/KR-VARIO + SMACTOR

HELOS/KR-VARIO + SMACTOR

boost: 5

Aerosols | Sprays
Size range: 0.25 µm - 1,750 µm
Method: Laser Diffraction

Show configuration

Suited for

Applied for control of

Particle size analysis with MYTOS, RODOS and TWISTER with process-coupling

MYTOS integrates the core particle size technologies of HELOS laser diffraction and RODOS dry dispersion in a single robust body: a process-proven laser diffraction sensor for dry powders ranging from 0.25 μm to 3,500 μm. In combination with the sampling system TWISTER a complete in-line integration into the processing pipe is realised. Alternatively, MYTOS may be operated on-line either with TWISTER, MIXER, L-probes or existing sampling solutions. Integrated at-line operation in automated lab environments is succeeded with vibratory feeder VIBRI.
